Chalcogenides: Advanced Materials for Phase-Change & Optical Applications

Chalcogenides—compounds made from elements like sulfur, selenium, or tellurium mixed with metals—are gaining traction across the tech world. Why? Because they can quickly and reliably switch states and control how light or heat moves through a material. That makes them incredibly valuable for data storage, optical systems, and energy devices where performance, speed, and efficiency are vital. Chalcogenide materials consist of at least one chalcogen anion (group 16 element), in particular sulfide, selenide, and telluride, shown in red. The transition metals chalcogenides consist of a transition metal (d-block elements) bonded with a chalcogenide (S, Se, Te). These materials exhibit unique material properties and are highly covalent, exhibiting semiconducting properties.

Transition metal dichalcogenides (TMD) include metals that form a metal disulfide (MS2), metal diselenide (MSe2), or metal ditelluride (MTe2). TMD materials of particular interest in recent research are shown in green on the periodic table.

Why Chalcogenides Matter

They can switch between amorphous and crystalline states: perfect for fast, reversible data storage like phase-change memory. They also offer tunable optical properties for reconfigurable lenses, and in thermoelectric devices, they help manage heat and generate power.

To make it all work, precision matters. Techniques like ALD and sputtering apply thin, even layers. Post-deposition annealing controls the switching behavior, and smart interface design keeps multilayer devices running smoothly.

When to Use Them

You’ll find chalcogenides at the heart of:

  • Non-volatile memory that needs to switch fast and last long
  • Optical components that require precise light control
  • Thermoelectric devices where electrical and thermal properties must stay balanced

Veeco’s Role in Making It Happen

Veeco provides the tools that make working with these materials possible. Our systems offer atomic-scale film control, real-time monitoring, and the scalability needed to move from R&D to full production, without sacrificing precision.

APPLICATIONS

Atomic layer deposition techniques can be used to deposit thin film chalcogenide materials, either directly, or by utilizing a sulfurization anneal after the ALD deposition. ALD techniques offer unique capabilities to deposit films on three dimensional features in a conformal manner with accurate material composition and controlled film thickness.

There has been a pronounced interest in transition metal chalcogenide materials for photovoltaics, photonics, catalysis, and energy storage applications. Of particular interest have been the sulfide chalcogenide materials.

Examples of chalcogenide films deposited on CNT platforms

  • ZnS – Zn(1-x)OxS – CoS
  • In2S3 – PbS – Sb2S3
  • Cu2S – Cu2ZnSnS4

Single junction efficiency limits

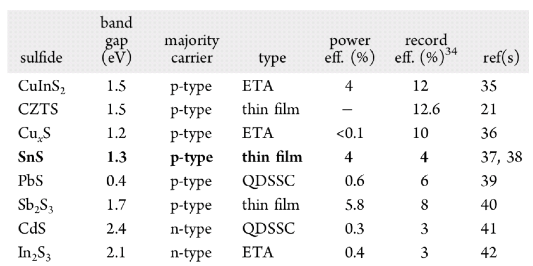

ALD sulfide absorbers

Ref: Dasgupta, N. P., et al., Accounts Chem Res 48, 341–348 (2015).

CHALCOGENIDE PHOTOVOLTAICS

Atomic layer deposition techniques can be used to deposit thin film chalcogenide materials.

Chalcogenide materials for photovoltaics applications have been explored for the absorber materials where bandgap energies are better suited to achieve higher levels of efficiency ( 31 – 34% efficiency at 1-1.6 eV). Quaternary films can be deposited using ALD techniques, including copper zinc tin sulfide (CZTS). ALD deposited materials can also be used for fabricated buffer / emitter materials (In2S3, ZnS, CdS, and Zn(O,S)).

ENERGY STORAGE

ALD deposited films have been investigated in energy storage and battery applications with demonstrated levels of improved performance.

  • Cu2S / carbon nano-tubes (CNT) cathodes @260 mA h g-1
  • Li2S @ 800 mA h g-1

PHOTONICS

Chalcogenide materials have also been used in the photonic and solar applications.
ZnS for TFEL displays (first ALD industrial application)

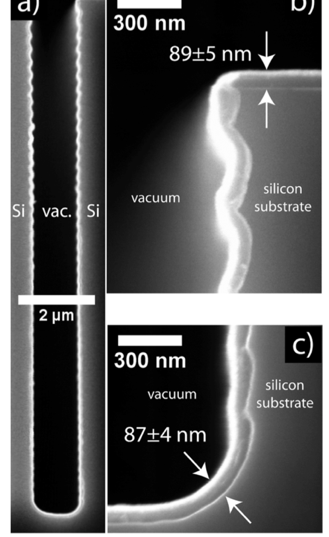

Cu2S / SnS2 / ZnS trilayer deposited on a silicon trench wafer
Ref: Thimsen et al. , Chemistry of Materials, 24(16), 3188–3196 (2012)

2D DICHALCOGENIDES

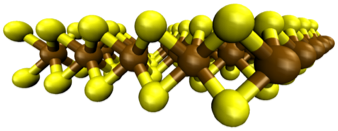

Two dimension dichalcogenides have been investigated for their unique material properties, including band gap semi conducting properties, photoluminescence, and absorbance as the film thickness is reduced to one monolayer thickness. Atomic layer deposition offers a direct method toward achieving a one molecular layer thick film. Research is actively being pursued to develop a two step process utilizing ALD and a sulfurization anneal, or a direct growth method for transition metal dichalcogenide (TMD) materials.
ZnS for TFEL displays (first ALD industrial application)

Download Presentation on Chalcogenide films deposited on Veeco tools
